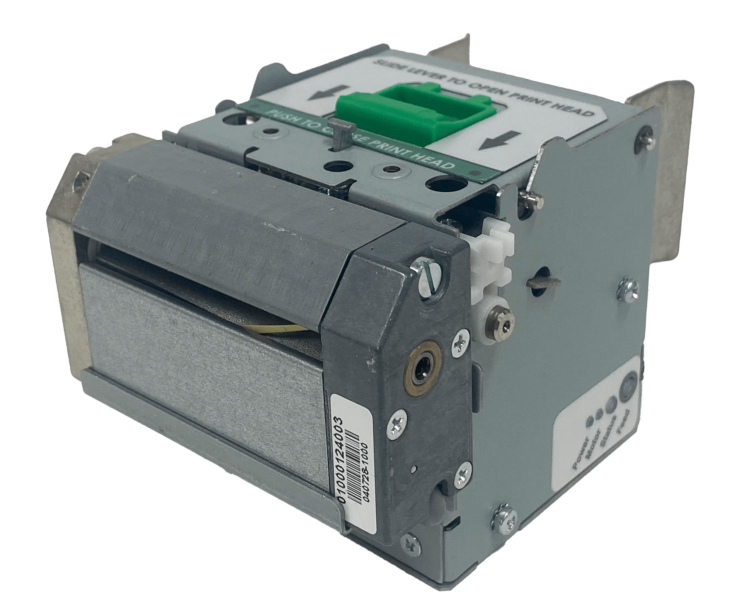

Kiosk 2" Thermal Printer
238M
The new standard for kiosk printers. Configurable options include 203 or 300 dpi print resolution, rotary or guillotine cutter, high or low torque motor, presenter, status monitoring sensors, and fixed or adjustable line guides, just to name a few.
Adjustable Paper Width
1” - 2.25"
(25.4 mm - 58 mm)
Communication Ports
USB
Max Print Speed
Up to 8” / second (200 mm)
Print Resolution
203 or 300 DPI
The ideal solution for a broad range of kiosk printing needs.
The new standard for kiosk printers. The 238M features field replaceable parts (i.e. print heads and rollers) to minimize kiosk down time and maximize total cost of ownership. Its compact footprint and flexible mounting positions provides easy integration into most existing kiosk designs. The Microcom name ensures a printer that is user-friendly, long-lasting, and affordable. The 238M offers a wide array of configurations that can be tailored to suit your unique printing application. Configurable options include 203 or 300 dpi print resolution, rotary or guillotine cutter, high or low torque motor, presenter, status monitoring sensors, and fixed or adjustable line guides, just to name a few.
Key Features
Dimensions
Accessories
- Guillotine cutter (optional industrial rotary cutter)
- Easy to replace wear parts
- Rugged metal design
- Presenter (optional)
- High torque motor for thicker stock and larger rolls (optional)
- Small form factor
- Auto loading capability
- Windows print driver for quick and easy integration
- Microcom LDS programming language
- Paper up to .013” thick
- 20MB Flash for storing fonts and graphics
- 8MB RAM
Height 2.8” (71 mm)*
Width 3.95” (100 mm)
Depth 5.0” (127 mm)**
Weight 1.40 lbs. (.64 kg)***
*Height of a low torque printer. Height with high torque printer is 3.45” (87.6 mm)
**Depth of a printer without presenter. Depth with presenter is 6.9” (175 mm)
***Weight of a low torque printer without presenter
[Click to See Image]
Drivers
- Used for USB connectivity on FTDI chip set printers by utilizing a USB to Virtual Serial Port driver
- For general Windows printing using Windows print sub system
Utilities
Developers Tools
Windows Driver Sample Application
- Used to demo the Microcom Windows driver programmatically | Requires Windows Print Driver
Manuals
- Download and view the manual for the Microcom Windows driver
- Download and view the operators manual for the Microcom 238M thermal printer
Media
- 2" x 5.5” Event Tickets
- Credit Card Tickets
- Bag Tags
- Continuous Receipt Roll (up to 2.25” wide)
- Die-Cut Labels
Recommended Uses
238M Applications:
- Live Event Ticketing
- Promotional Vouchers
- Automated Parking Attendant
- Receipt Printing
- Admissions Processing
- Unattended Weigh Scale Applications
