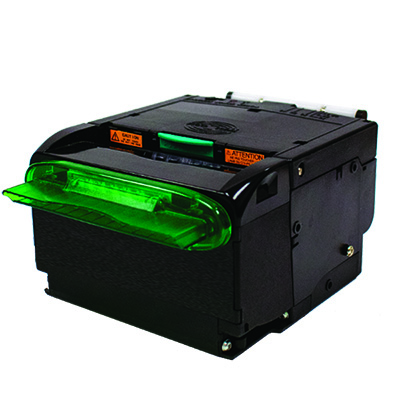

Kiosk 3" Thermal Printer

Model 315M

Adding to Microcom’s full line of kiosk printers is the compact model 315M.  Easy to maintain and easy to integrate, the 315M provides a full-featured and reliable receipt printer at an entry level price.  This product caters to the most common receipt printing applications for everything between 48 mm and 82.5 mm paper widths.

Adjustable Paper Width

1.89” - 3.25”
(48
mm - 82.5 mm)

Communication Ports

USB

Max Print Speed

Up to 6” / second (150 mm)

Print Resolution

203 DPI

Cost-effective receipt printing for the self-service world.

The model 315M caters to the most common receipt printing applications for everything between 48 mm and 82.5 mm paper widths. Compact size, ease-of-use, and reliability makes the 315M an easy choice for unattended kiosks. Out of the box, the 315M offers everything you need to be successful in a receipt printing application. It is equipped with multiple sensors to provide feedback for different paper and error conditions. A standard presenter/retractor feature extends printer life by limiting end-user interaction with the printer until the receipt is fully printed and cut. An optional paper holder with low stock sensor is also available to minimize additional design efforts.

Key Features

Dimensions

Accessories

  • Long life print head
  • 203 dpi resolution
  • Industrial strength cutter
  • Presenter/retractor
  • Automatic paper loading
  • Up to 6” (150 mm) per second
  • Auto loading capability
  • Microsoft WindowsÂŪ 7, 8, 8.1, 10, Linux
  • 6” (150 mm) O.D. roll capacity
  • Multiple sensor options
  • USB
  • Looping presenter
  • Retraction feature
  • Movable supply holder
  • Self-centering and locking media guides
  • Multiple mounting locations for flexible kiosk installation

Height 3.0” (76.7mm)

Width 4.6” (116mm)

Depth 5.78” (146.8mm)

Weight 3.3 lbs. (1.5kgs.)


  • Paper Tension Arm
  • Supply Holder

Drivers

Windows Print Driver

  • For general Windows printing using Windows print sub system

Utilities

MCT

  • Terminal application for communication with Microcom products

BMP2MIC

  • Bitmap to Microcom format for graphic creation

Developers Tools

Manuals

Windows Print Driver Manual

  • Download and view the manual for the Microcom Windows driver

315M Operators Manual

  • Download and view the operators manual for the Microcom 315M thermal printer

Media

PAPER WIDTH:
1.9”-3.25" (50.8 mm-82.5 mm)

PAPER THICKNESS:
.002” -.004” (.06 mm-.1 mm)

Contact us at sales@microcomcorp.com or (740) 548-6262

Recommended Uses

315M Applications:

  • Self-Service Kiosk
  • Receipt
  • Gaming
  • Food Service
  • Healthcare
  • Transportation
  • Parking
  • Retail
