Battery Powered 2" Thermal Printer

Model 238B

Custom Designed Application:

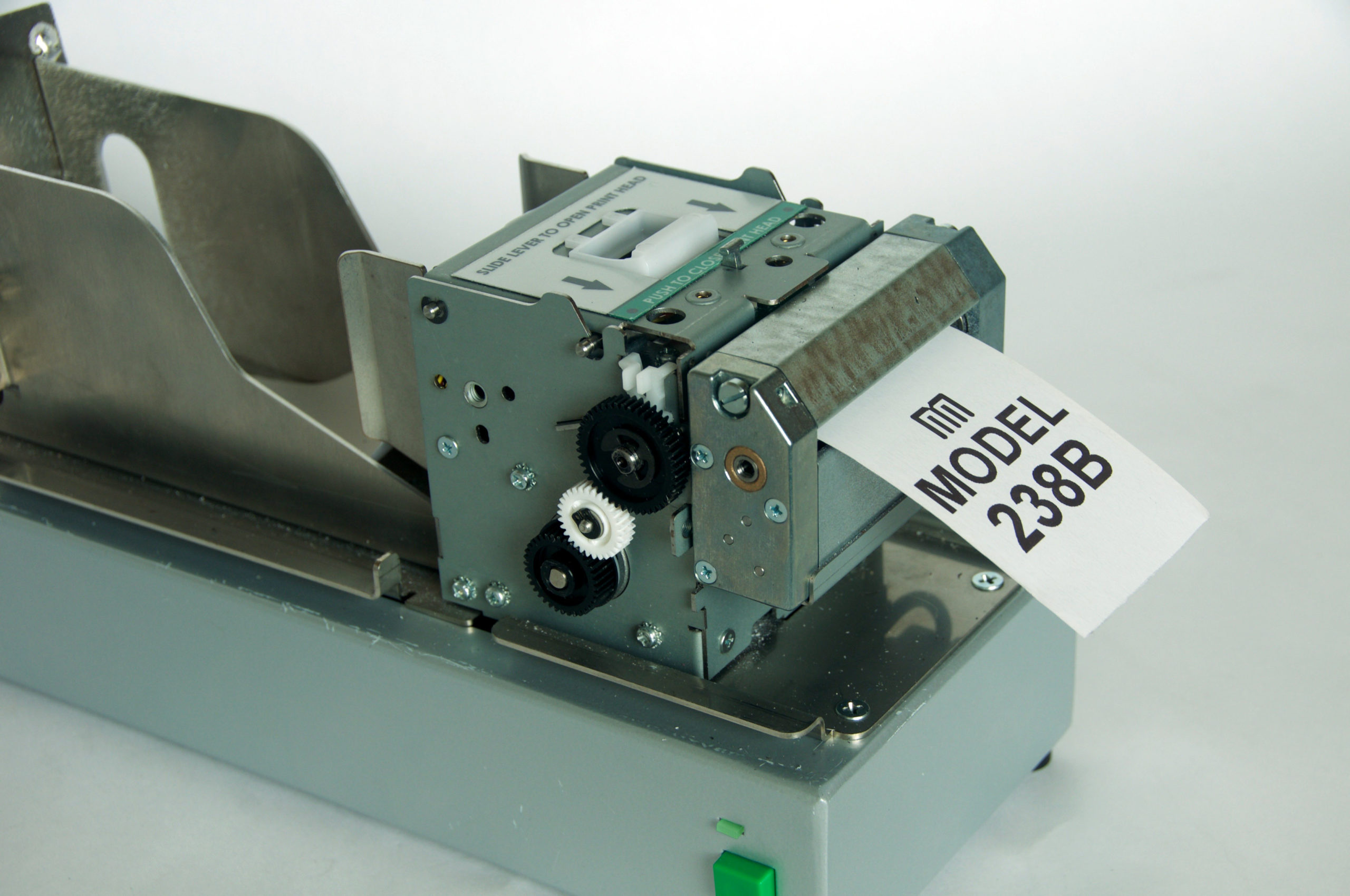

Go remote with the Microcom Model 238B battery powered thermal printer. Designed for 2″ wide tickets, it can print up to 4,000 tickets on a single charge.  Our printer includes an internal ticket tray, industrial rotary cutter, and standard 300 dpi printing.

Adjustable Paper Width

1” - 2.25"
(25.4 mm - 58 mm)

Communication Ports

USB

Max Print Speed

Up to 8” / second (200 mm)

Print Resolution

300 DPI

Fast and portable. Prints anywhere you need to go.

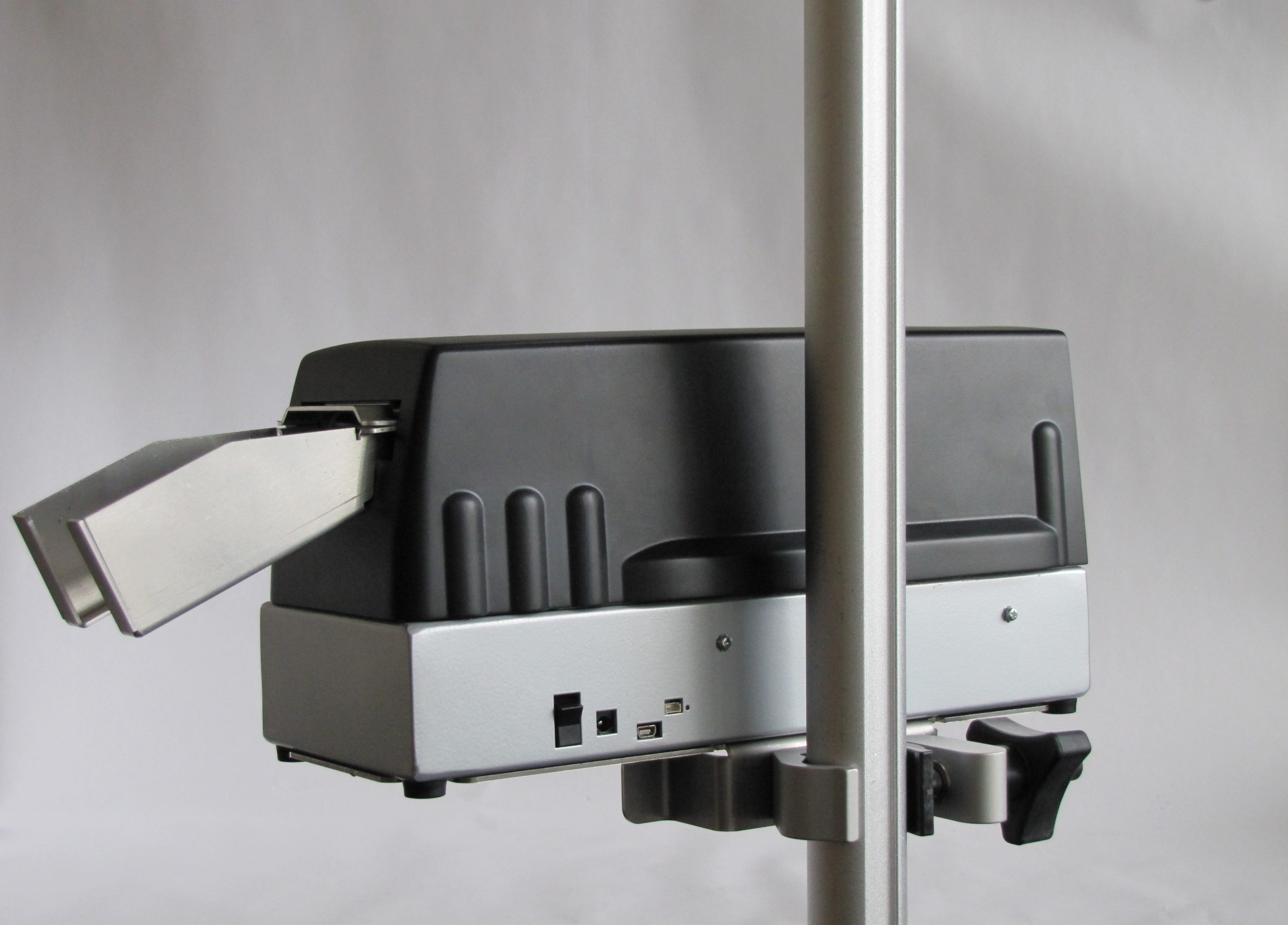

With an ultra capacity battery, the 238B can print up to 4,000 tickets on a single charge, for worry-free ticketing all day long. Simply place on the charger overnight and repeat! Features internal ticket tray for a 2” stack of two-fold credit card sized tickets (approx. 350) or 2” stack of single fold standard entertainment tickets (approx. 175). Use as a stand-alone printer or mount to a mobile cart for easy line-length management. The 238B comes standard with 300 dpi print resolution, a heavy duty rotary cutter that can slice through ticket stock up to 13 mils thick, and high-speed USB connectivity. Use with the Microcom Windows driver or standard ticket language for compatibility with most software programs.

Key Features

Dimensions

Accessories

  • Long lasting rechargeable battery
  • Industrial rotary cutter
  • Easy to replace wear parts
  • Internal ticket tray
  • Small form factor
  • Auto loading capability
  • Windows print driver for quick and easy integration
  • Microcom LDS programming language
  • Paper up to .013” thick
  • 20MB Flash for storing fonts and graphics
  • 8MB RAM

Height 6” (152 mm)

Width 5” (127 mm)

Depth 12” (305 mm)

Weight 7.1 lbs. (3.2 kg)


  • Catch Tray (Hopper)
  • Mounting Tray

Drivers

Windows Print Driver

  • For general Windows printing using Windows print sub system

Utilities

BMP2MIC

  • Bitmap to Microcom format for graphic creation

Manuals

Windows Print Driver Manual

  • Download and view the manual for the Microcom Windows driver

238B Operators Manual

  • Download and view the operators manual for the Microcom 238B thermal printer

Media

PAPER WIDTH:
1” -  2.25”
(25.4 mm - 58 mm)

PAPER THICKNESS:
UP TO .013"
(.33 mm)
              • 2" x 5.5” Event Tickets
              • Credit Card Tickets
*Don't see what you're looking for? Contact sales at sales@microcomcorp.com or (740) 548-6262

Recommended Uses

238B Applications:

  • Live Event Ticketing
  • Line Busting
