Our 520 thermal printer is the ideal solution for printing labels, tickets, wristbands, and more on-demand.
4" Thermal Printer
Model 540
The 540 is an entry level, 4 inch wide thermal desktop printer. It is capable of printing on a variety of different media types including labels, tags, tickets, and wristbands. It takes up little desk space and provides a quality, reliable print out.
Adjustable Paper Width
1.25” - 4.7"
(31.7 mm - 120 mm)
Communication Ports
USB and Serial
Max Print Speed
Up to 6” / second (200 mm)
Print Resolution
203 DPI
Easy to learn. Easy to operate. Easy on the budget.

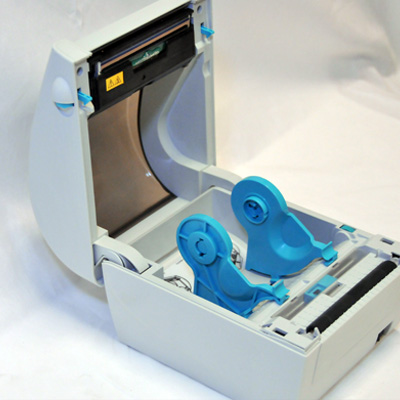

Microcom’s model 540 is an ideal solution for printing shipping labels and many other applications. It provides an efficient, affordable printing solution for Windows, Linux, and ZPL applications. Its design offers internal storage for continuous, die-cut, and black sense mark media (up to 5” OD roll) as well as rear-loading for fanfold labels and event tickets. Model 540’s small foot print combined with the reliability customers expect from Microcom products make it the ideal choice for four inch wide printing applications.
Key Features
Dimensions
- Compact footprint
- Label peel and dispense (optional)
- Serial/USB, Ethernet and Wifi (optional)
- 5” OD internal paper storage
- Self-centering media guides
- Windows print driver for quick and easy integration
- ZPL emulation
- Paper up to .007” thick
- 4MB Flash for storing fonts and graphics
- 8MB RAM
Height 6.8” (172 mm)
Width 6.7” (170 mm)
Depth 8.3” (211 mm)
Weight 3.4 lbs. (1.5 kg)
Drivers
- For general Windows printing using Windows print sub system
Media
1.25” - 4.7"
(31.7 mm - 120 mm)
UP TO .007" (.17 mm)
- 2" x 5.5” Event Tickets
- 1" x 11" Wristbands
- Die-Cut Labels
- Continuous Receipt Roll
(up to 2.4” wide) - Fanfold Media (up to 2.4” wide)
Recommended Uses
540 Applications:
- Shipping Labels
- Live Event Ticketing
- Inventory Management
- Healthcare Registration
- Boarding Passes
